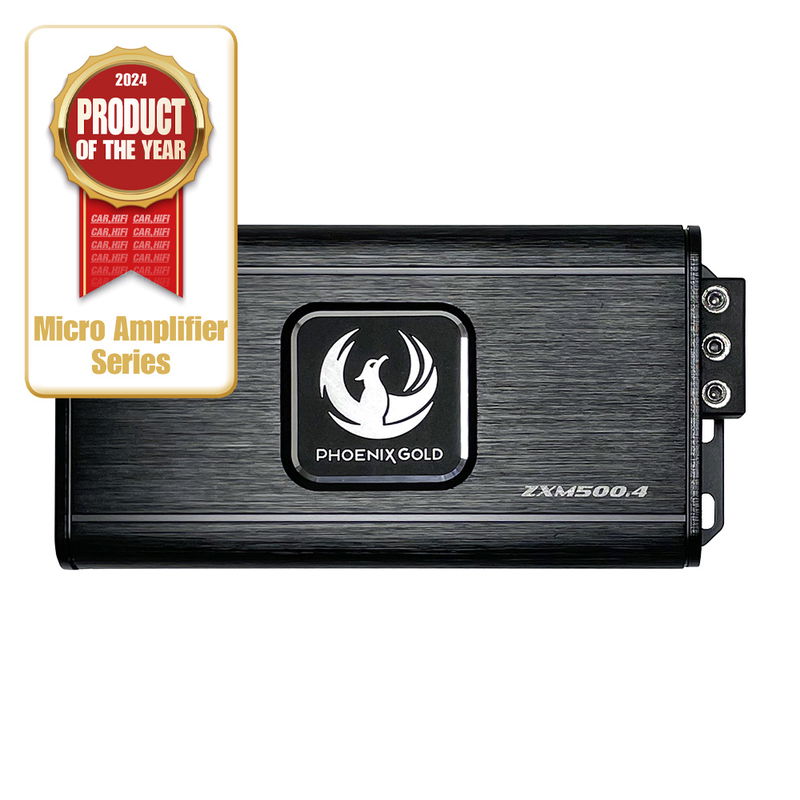

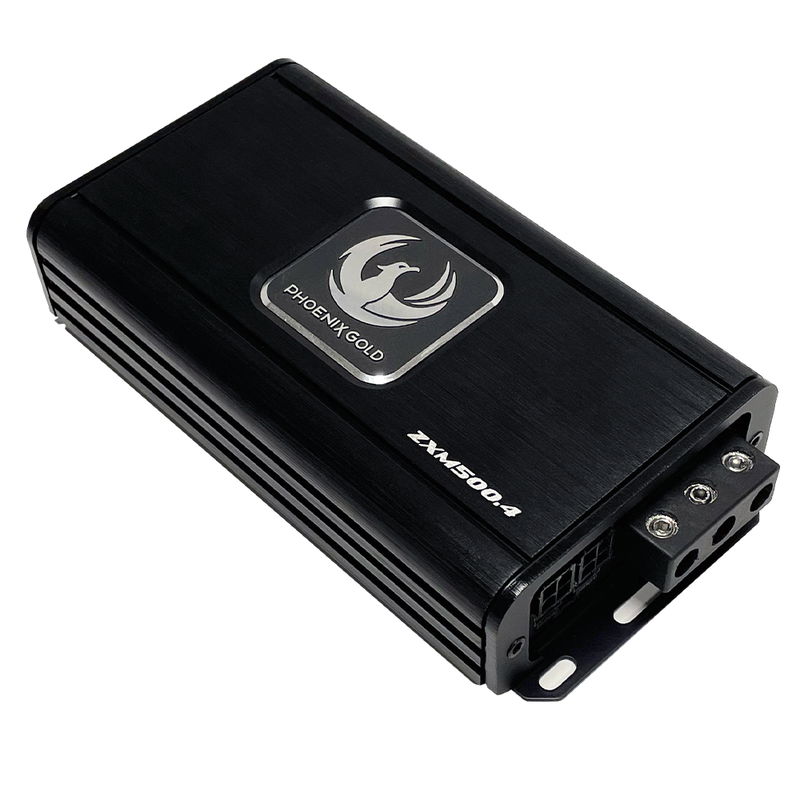

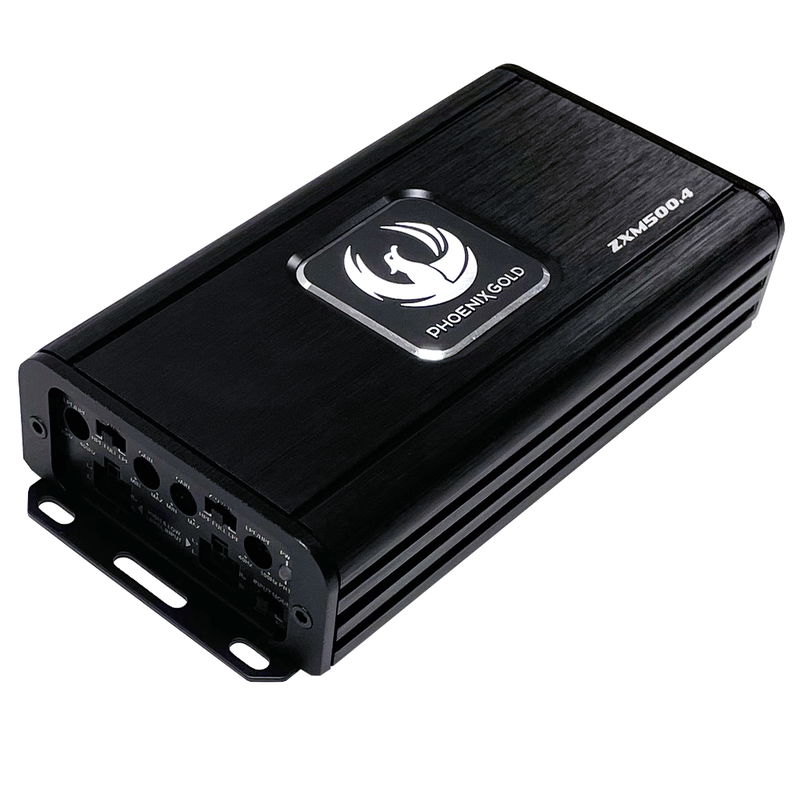

Phoenix Gold ZXM500.4 4 Channel Mini Amplifier

The ZXM series is engineered with a paramount focus on delivering exceptional sound quality without compromise. The ZXM series is engineered with a paramount focus on delivering exceptional sound quality without compromise.

The ZXM500.4, in particular, showcases an impressive total power output of 500W RMS, allowing you to experience a new auditory experience. Additionally, this versatile amplifier offers the flexibility of bridging the 4 channels to yield an impressive 2x250W RMS in 4Ohm, catering to diverse audio setups and preferences.

In addition to its impressive technical specifications, the ZXM500.4 is designed with practicality in mind. Its ultra-small form factor facilitates effortless installation, making it an ideal choice for setups where space is at a premium.

The AutoStart functionality on high-level input simplifies usage, ensuring hassle-free operation.

From Full Class-D technology optimizing efficiency to exceptional signal-to-noise ratio and minimal distortion, the ZXM500.4’s specs speak volumes about its commitment to top-tier audio performance.

The ZXM500.4 doesn’t compromise on safety either. It comes equipped with an array of protective measures, including short circuit, thermal, and high/low voltage protection, ensuring the longevity of the amplifier while prioritizing user safety.

Beyond its exceptional power and performance, this amplifier boasts an engineering marvel by minimizing electromagnetic interference (EMI). This ensures that the amplifier operates without interference, preserving the integrity of advanced electronics and FM signals, maintaining audio quality.

the ZXM500.4 stands as a pinnacle of innovation, engineering, and performance in the realm of Class-D amplifiers. With its compact size, staggering power output, advanced features and engineering, it elevates audio experiences to new heights.

The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS.

This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm.

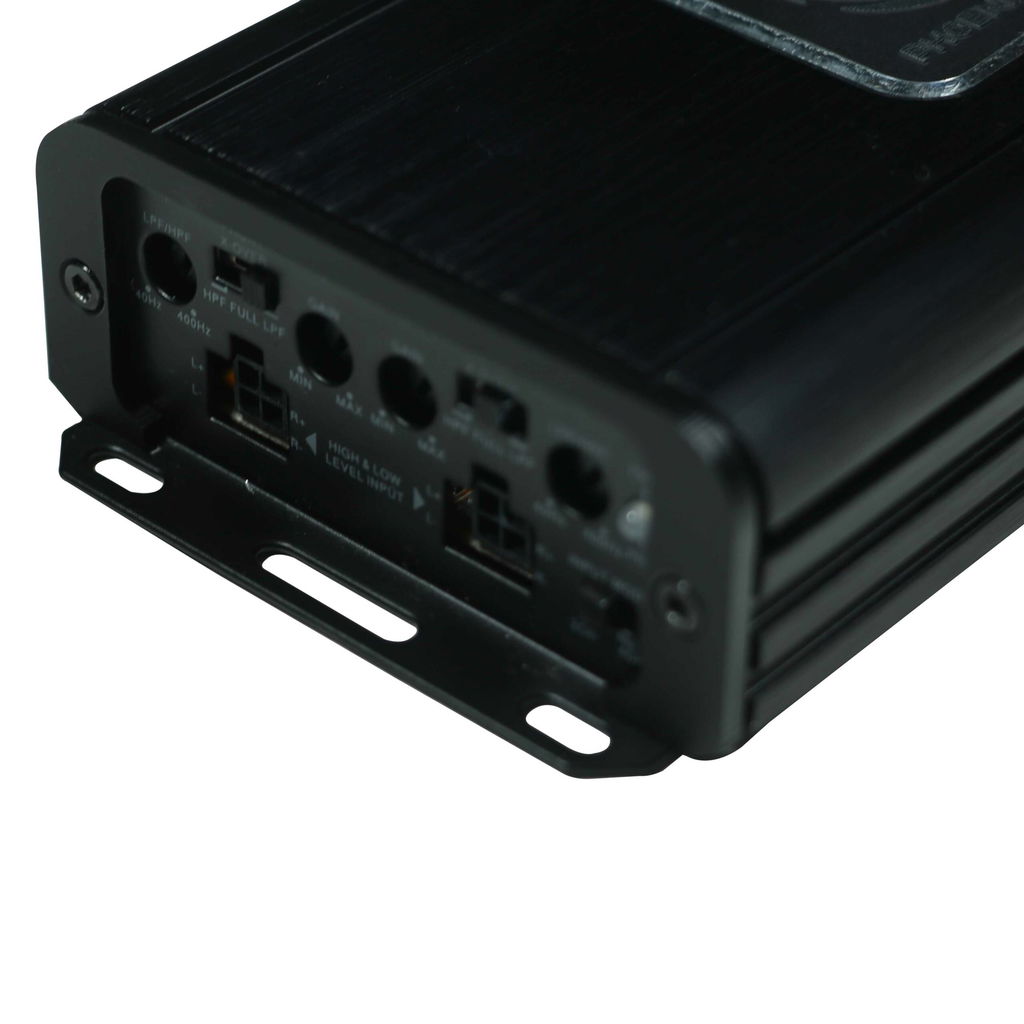

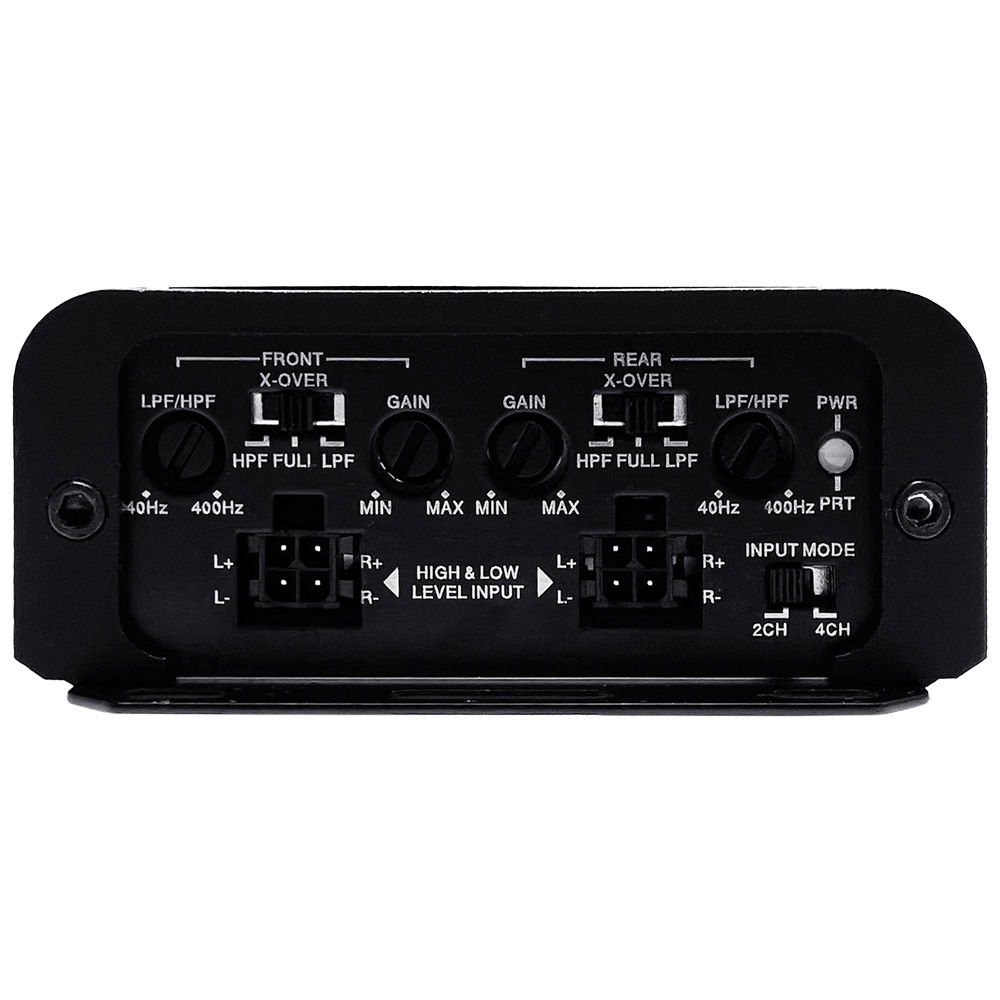

The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.

ZXM500.4 Key Features
Massive Power & Performance
Full Class-D technology offers efficiency & performance
Short circuit/thermal and high/low voltage protection
Excellent signal-to-noise ratio and FM noise rejection
Built-in protection LED light status indicator
Surface mount component technology
Ultra small size for easy installation
Autostart on high-level input
Full adjustable HP & LP filter

ZXM500.4 Specifications
Class-D 4-Channel Mini Amplifier
Power (MAX) 1000W
Power Ratings (RMS)
125W x 4 @ 2Ohm
80W x 4 @ 4Ohm
250W x 2 @ 4Ohm bridged
Frequency Response: 20Hz – 20kHz
Signal to Noise Ratio: > 90dB
Total Harmonic Distortion: < 0.3%
Low Pass Filter: 40Hz – 400Hz (12dB/Oct)
High Pass Filter: 40Hz – 400Hz (12dB/Oct)
High-Level Input Auto Turn-On
Dimensions (LxWxH) 165 x 83.1 x 34.8mm
