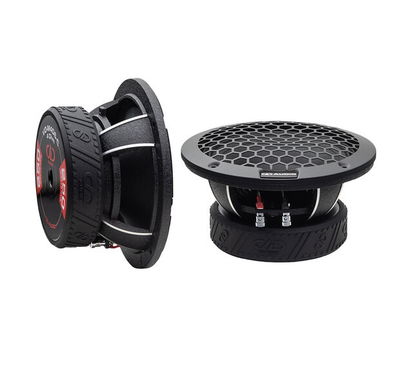

The AW-6.5a mid-woofers represent “state of the art” in driver technology. The open design cast aluminum baskets provide an ultra rigid support system while also functioning as an additional heatsink and shorting ring. A high-energy double shorting ring motor is matched to a 1.5” copper clad aluminum wire, Kapton former voice coil, providing balanced output efficiency and power handling. The inverted butyl rubber surround and composite spider work in tandem to damp unwanted vibrations while providing control and linearity. An aluminum cone with a b dustcap offers the neutral sound of a pulp cone with the precision only an ultra rigid cone can deliver. This combination achieves wide bandwidth and efficient energy transfer to the air.
Speaker Size (In):6.5
Watts RMS:75
Watts Peak:200
Impedance:S4
VCD (In):1.5
Frequency Response (Hz):50 - 20k
Fs (Hz):62
Qms:4.835
Qes:0.452
Qts:0.413
Vas:14.714
dBSPL:91
Mounting Diameter (In):5.75 (146mm)
Mounting Depth (In):2.9. (74mm)
Watts RMS:75
Watts Peak:200
Impedance:S4
VCD (In):1.5
Frequency Response (Hz):50 - 20k
Fs (Hz):62
Qms:4.835
Qes:0.452
Qts:0.413
Vas:14.714
dBSPL:91
Mounting Diameter (In):5.75 (146mm)
Mounting Depth (In):2.9. (74mm)
